 #261559  by TrueBlue

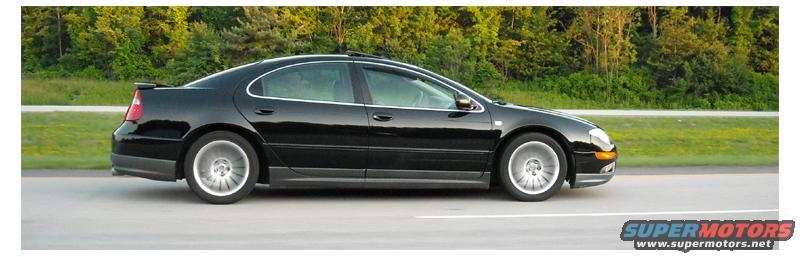

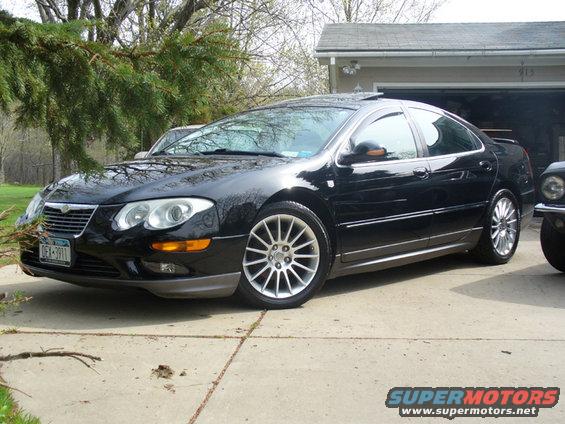

This is my '02 300M Special, black-on-black.


This is my second 300M, my first was totalled in a car accident. After I was cut a check from my insurance, I went after this particular rust-free car. It was a corporate car in TX for the first 60K miles of it's existance, and had several owners before it was bought in an auction and shipped to PA, where I bought it in early '08.

This past winter, the car sat for a few months, and it needed some work. I recently had the timing belt and water pump done by a local shop, and thought that they had mis-sealed the pump, I was leaking coolant. I topped the coolant off and took my girl for a drive in the car - it started hard, threw a misfire code, then settled down - and I later noticed that the engine was making a tick-tick-tick sound. I parked the car until I could take a better look at it.


^ everybody's hungry!

It was around this time that I met Matt (mlasms08) at my local Chrysler dealership. I asked for a "guy that knew LH body cars" and they immediately thought of Matt! He agreed to stop by and take a look at the car. We thought it could have been the stuck lifter condition, so off came the valve covers.


Well... it wasn't a leaky water pump.

Couldn't believe what we found...



Sludge. Thick, black, brownie-mix sludge.

I sent the remaining oil out for analysis. The return letter wasn't very promising.


Ruh roh! So off come the bearing caps.



And... yep.

That is the source of the knocking... a scored crankshaft, pic doesn't show much more than a 1/8" notch, but it was quite deep.

FML. Now what? This engine, if it wasn't so completely gunked up, was eminently worth saving. But, with the amount of goo we found everywhere, we knew she was toast. So, we did what any red-blooded American would do, and drove to the partsyard. :P
Basslicks liked this
User avatar
 #261560  by TrueBlue

With a little help from a work van and a buddies' engine crane...


It's so clean. It really is.



LIM and injectors all look great. Plus I have spares, too.

No leaky gaskets here.

TB looks to be in great shape.

A new wall hanging. ;)

Very happy with the new engine, we pulled the pan off and there was nothing in there, and I mean nothing - no goo, gunk, shavings, sediment, magnetic particles. Coolant passages are free and clear. It had around 85K when the car it was in was totalled. Junkard engines are often hit or miss, and until it's been in and running for a while, you won't definitively know what you got. But, we're pretty confident we can work with this mill.
Basslicks liked this
User avatar
 #261561  by TrueBlue

So, in for a penny, in for a pound. Car's finally getting the upgrades and attention it should. Now to address rolling stock...


These are stock 19" SRT-4 Caliber wheels that a very good friend of mine gave me for fitment. The bolt pattern is the same, but the hub diameter beetween the two is different. That same great friend of mine also happens to be a mechanical draftsman that has access to lathes.


Note that this is a hubcentric design, the adaptor / spacer rides both bores.


We're still playing with the bore depths, and it is possible that these wheels just may not be in the cards. Time (and some measurements that I need to get off my lazy a** and confirm) will tell.
Basslicks liked this
User avatar
 #261562  by TrueBlue

Now to get that old lump out. We need to level-up the garage. Mid-range compressor and a nice impact gun will help.


I began cleaning up the mix of old and "new" engine parts (whichever was in the better condition) for paint. Rags soaked in undiluted Purple Power (safe for AL), varying-bristle scrub brushes, dishwashing detergent, and compressed air.

High-temp primer was laid, two coats, then hit with 220, then a high-temp silver base coat. Block will be black.

Valve covers are a vibrant red.

Hoping for this subtle, Audi-like effect:
Basslicks liked this
User avatar
 #261563  by TrueBlue

Meanwhile, Matt and I prepare the dead engine. Matt's been awesome throughout this whole ordeal, top notch mechanic and fast becoming a good friend.

"Hurry up, man! We're getting sunburnt."

And the moment of truth:


Going...

Going...

Gone. Where we sit as of July 10th - old engine getting cannabalized for more good-condition parts, new engine getting the fresh timing belt, water pump, and tensioner. Also doing the tie-rod bushings and the heater hoses while we're in there.

Just some of the new parts that will be going back into reviving this elegant and sexy girl.
Basslicks liked this
User avatar
 #261571  by 300maximilien

wow...can't wait to see the rest! Love that garage of yours ever since your first post of it.


FYI that dead horse is worth about $150 in AL scrap. Depending on how much you tear it down.....or about $80 in mixed metal scrap
User avatar
 #261572  by grayslater

Can't wait to see you get this back on the road! A lot of work involved there. Doing a great job.
User avatar
 #261573  by TrueBlue

Craig, Cory, thanks guys. Labor of love, for sure. I almost wanted to get rid of her before this, but I remembered how much I loved this car on road trips, just eating the miles up.

$150 in scrap? Oh, I'll seperate it for that!
 #261580  by isrb710

Thanks for your great pics! I like the red for the valve covers! Very nice work!!!
User avatar
 #261639  by M-Pressive

Great pictures of the project!

I like the red covers as well.

Keep us updated as you continue to put it back together.
 #261646  by tinman

Great writeup is true! Excellent. Keep it up and you are almost there. I, too, love the red accent.
 #261795  by Tarheel

Excellent documentation! Very obviously you know what you are doing and I know you will have excellent results.
User avatar
 #263315  by TrueBlue

Bump. Been on vacation, but home now and determined to get this project finished soon.

The day of my flight out I grabbed a new lower radiator brace, mine looked like someone used it as a jack point and it was collapsed centrally with no scuff marks (i.e. impact marks).
User avatar
 #263322  by Bill Putney

TrueBlue wrote:Bump. Been on vacation, but home now and determined to get this project finished soon.

The day of my flight out I grabbed a new lower radiator brace, mine looked like someone used it as a jack point and it was collapsed centrally with no scuff marks (i.e. impact marks).
Mine is slightly dented in the center from when I used to use it to jack up the complete front end. I don't do that anymore - not enough surface area - too many psi. :) You probably remember a few years ago when someone here was using that as a jacking point, and it slipped off the jack - ripping upward thru a lot of stuff. Horrifying, yet I laugh when i think about it. I worry about myself sometimes. :)
User avatar
 #263354  by TrueBlue

I remember that guy. Ugh... if it slipped off the jack I think next stop would be the oil pan, and I doubt that little chunk o' aluminum is gonna hold much.
User avatar
 #264850  by TrueBlue


New valve cover gaskets. Same part number = fits both sides. Nice.


Compare this oil pan with the original one... so fresh and so clean clean!


It's not every day that you have the Flash working in your garage. No exaggeration, he was absolutely flying through this, but very, very thorough. As opposed to me, who is very, very slow. :P


Oil pan up!


Fresh timing belt, water pump, and pulley in! I wish the timing covers were clear. :)


---> <--- this close to going back in the car. Need to get my upper coolant hoses for the heater core and a few other minor things.

I think the red will look great in the bay. Only a few hours of work away from a fresh start!
Basslicks liked this
 #265592  by mlasms08

we got alot done after this last pic! I'll let Tom update!
User avatar
 #265593  by Brando26

Awesome work. It's nice to see how these things go from bad to good... Literally see it.
User avatar
 #265612  by TrueBlue

Friday night she was running, albeit roughly. We had, uh, misplaced the crank position sensor and Matt had a failing spare in his car that we could use to get her turned over. I went out Sunday and grabbed a new one so we could finish trouble-shooting and get her reassembled.

To ensure maximum sexiness, Matt brought down a DRBIII. Probably worth more than the car!

Some of the various screens.

The battery was flatter than Calista Flockheart, and I smoked my battery charger getting her to run Friday night. Sunday we switched tactics to jumping. "I get by with a little help from my friends..."

After that, it was pretty smooth sailing. Chased down the few remaining hiccups, cleared the codes, and the front end went back on. We pulled it outside to let the battery charge and throw the hood back on.

I kinda wish I could drive it like this.

Then a few quick laps to be certain everything is 100%. We noticed a slight clunk when accelerating. Matt knew what it was right away... forgot to bolt down the motor mounts. lol, oops. :)

Did a little detail action afterwards, all set now.

However, this is not the end of this car's revitalization. Stay tuned, more parts are coming in as we speak, and more services are scheduled. We did the inner tie rod bushings - a huge difference in steering feel, the old ones were practically gum. Car feels stronger than ever, starts evenly, runs quietly.

*HUGE thanks to mlasms08, absolutely the key to getting this car on the road again. Thanks buddy.*
Basslicks liked this
User avatar
 #265613  by TrueBlue

Here's some of the stuff we did, I'm forgetting a bunch, I'm sure.

Crank position sensor
Cam position sensor
Timing belt
Water pump
Lower intake gaskets
Upper intake gaskets
Valve cover gaskets
Oil pan / RTV gasket
Power steering belt
AC belt
NGK plugs
Intake heater hose
Return heater hose
Upper / lower radiator hoses
Air / oil filter
Inner tie rod bushings
Mopar coolant

Cleaned throttle body / intake
Degunked oil pan and pickup tube
Cleaned / checked heads, cams and valves
Cleaned injectors
Scanned with DRBIII
